Here is a detailed walkthrough of cloning a General Motors computer using the TOPDON Phoenix Smart. The donor vehicle in this case was a 2009 Cadillac Escalade equipped with an E38 ECM.
Below is a step-by-step breakdown of the process, based directly on that hands-on tutorial.
Tools used:
Procedure:
Step 1: Accessing the Cloning Function

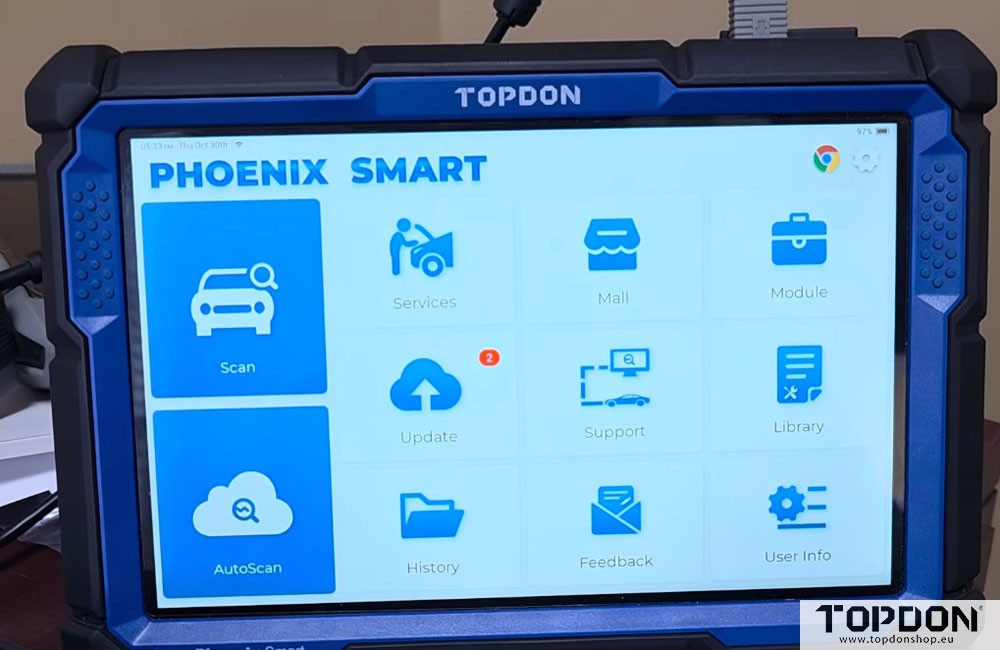

The process begins on the Phoenix Smart’s main interface:
Navigate to Services.
Scroll down to the selection menu, select IMMO Prog and enter it.
Tap through a few “OK” prompts to proceed to the connection setup.
Step 2: Setting Up Hardware Connections
The Phoenix Smart requires a multi-device setup. We connected:
- The Phoenix Smart tablet to its wireless dongle.
- A T-Ninja box (an external programming interface).
- An MCU3 adapter, which must be purchased separately.
Power was supplied via a wall outlet to ensure stable voltage throughout the procedure.
The system then prompts the user to confirm the type of job:
Clone an engine computer.
Manufacturer: GM (Delco).
ECM series: E38 (identified by visually inspecting the module).
Step 3: Wiring the Adapter
After selecting the correct ECM, the tool displays a wiring diagram showing exactly how to connect the T-Ninja box and MCU3 adapter to the computer.
Key points:
The ECM has two connectors: one black, one gray.
The system instructs the user to work with the black connector.
Each terminal is clearly labeled (e.g., “7-T2”), making it easy to match the leads to the correct pins.
We connected all leads according to the diagram, then powered on the T-Ninja box and pressed Connect on the tablet.
Step 4: Backing Up the Original Module
Once the connection was confirmed, the next critical step was to back up all data from the original ECM:
Selected the Backup option.
The read process took approximately 10 minutes.
Upon completion, the file was saved to the tablet for later use.
This backup contains the immobilizer data, VIN, and all calibration settings unique to the donor vehicle.
Step 5: Clone the Replacement ECM
With the backup safely stored, we:
Disconnected all leads from the original ECM.
Moved the wiring harness and adapter connections over to the replacement (used) ECM.
Re-established the connection with the T-Ninja box.
After confirming the connection, we selected:
Restore (using the latest saved E38 file).
The write process was significantly faster—taking only about 2 minutes.
Once the restore completed, the system displayed a success message, and the cloning was finished.
Step 6: Final Result
The cloned ECM is now plug-and-play. After disconnecting the leads and installing the module into the vehicle, no additional security steps (such as immobilizer relearns) were required.
We had successfully cloned several GM modules as well as a Mini Cooper using the same method, and in all cases, the process worked without needing extra security resets.
Key Takeaways
Hardware is sold separately: The Phoenix Smart tablet, T-Ninja box, and MCU3 adapter are all independent purchases.
Follow the wiring diagram closely: The tool provides clear pin-out labels, making it straightforward if you take your time.
Backup is essential: Always read and save the original data before writing to the replacement module.
Results are reliable: Based on real-world use, cloned GM E38 ECMs start and run without additional programming.
